OmniEvents::Proxy Class Reference

Base class for three of the four Proxy servants. More...

#include <ProxyManager.h>

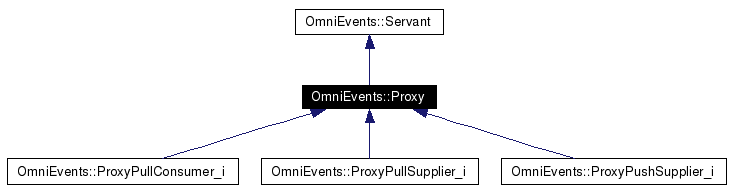

Inheritance diagram for OmniEvents::Proxy:

[legend]Collaboration diagram for OmniEvents::Proxy:

[legend]List of all members.

Public Member Functions
virtual	~Proxy ()
virtual void	reincarnate (const string &oid, const PersistNode &node)=0
	Re-create a servant from information saved in the log file.
virtual void	output (ostream &os)=0
	Save this object's state to a stream.
Protected Member Functions
	Proxy (PortableServer::POA_ptr poa)
void	keyOutput (ostream &os, const char *name)
	Helper method for constructing persistency output.
void	eraseKey (const char *name)
	Helper method for constructing persistency output.
void	basicOutput (ostream &os, const char *name, CORBA::Object_ptr target=CORBA::Object::_nil(), const char *extraAttributes=NULL)
	Helper method for constructing persistency output.
Protected Attributes
CORBA::Request_var	_req
Private Member Functions
	Proxy (const Proxy &)
	NO IMPLEMENTATION.

---

Detailed Description

Base class for three of the four Proxy servants.

Proxy servants are stored in a ProxyManager. There is one Proxy servant for each CORBA proxy object. (Compare with ProxyPushConsumer_i, where all objects are implemented by a single servant.)

Definition at line 104 of file ProxyManager.h.

---

Constructor & Destructor Documentation

OmniEvents::Proxy::~Proxy (   )  [virtual]

Definition at line 163 of file ProxyManager.cc. References _req, OmniEvents::Orb::deferredRequest(), and OmniEvents::Orb::inst().

OmniEvents::Proxy::Proxy (  PortableServer::POA_ptr  poa  )  [protected]

Definition at line 172 of file ProxyManager.cc.

OmniEvents::Proxy::Proxy (  const Proxy &   )  [private]

NO IMPLEMENTATION.

---

Member Function Documentation

void OmniEvents::Proxy::basicOutput (  ostream &  os, const char *  name, CORBA::Object_ptr  target = CORBA::Object::_nil(), const char *  extraAttributes = NULL )  [protected]

Helper method for constructing persistency output. Definition at line 201 of file ProxyManager.cc. References OmniEvents::Orb::_orb, OmniEvents::Orb::inst(), and keyOutput(). Referenced by OmniEvents::ProxyPushSupplier_i::output(), OmniEvents::ProxyPullSupplier_i::output(), and OmniEvents::ProxyPullConsumer_i::output().

void OmniEvents::Proxy::eraseKey (  const char *  name  )  [protected]

Helper method for constructing persistency output. Definition at line 189 of file ProxyManager.cc. References OmniEvents::omniEventsLog::exists(), keyOutput(), and OmniEvents::WriteLock::os. Referenced by OmniEvents::ProxyPullConsumer_i::collect(), OmniEvents::ProxyPullConsumer_i::disconnect_pull_consumer(), OmniEvents::ProxyPullSupplier_i::disconnect_pull_supplier(), and OmniEvents::ProxyPushSupplier_i::disconnect_push_supplier().

void OmniEvents::Proxy::keyOutput (  ostream &  os, const char *  name )  [protected]

Helper method for constructing persistency output. Definition at line 179 of file ProxyManager.cc. References OmniEvents::Servant::_poa. Referenced by basicOutput(), and eraseKey().

virtual void OmniEvents::Proxy::output (  ostream &  os  )  [pure virtual]

Save this object's state to a stream. Implemented in OmniEvents::ProxyPullConsumer_i, OmniEvents::ProxyPullSupplier_i, and OmniEvents::ProxyPushSupplier_i.

virtual void OmniEvents::Proxy::reincarnate (  const string &  oid, const PersistNode &  node )  [pure virtual]

Re-create a servant from information saved in the log file. Implemented in OmniEvents::ProxyPullConsumer_i, OmniEvents::ProxyPullSupplier_i, and OmniEvents::ProxyPushSupplier_i. Referenced by OmniEvents::ProxyManager::reincarnate().

---

Member Data Documentation

CORBA::Request_var OmniEvents::Proxy::_req [protected]

Definition at line 128 of file ProxyManager.h. Referenced by OmniEvents::ProxyPullConsumer_i::collect(), OmniEvents::ProxyPullSupplier_i::connect_pull_consumer(), OmniEvents::ProxyPullConsumer_i::connect_pull_supplier(), OmniEvents::ProxyPushSupplier_i::connect_push_consumer(), OmniEvents::ProxyPullConsumer_i::triggerRequest(), and ~Proxy().

---

The documentation for this class was generated from the following files:

• ProxyManager.h
• ProxyManager.cc

---
