OmniEvents::EventChannel_i Class Reference

Servant for CosEventChannelAdmin::EventChannel objects, also inherits from omni_thread. More...

#include <EventChannel.h>

Inheritance diagram for OmniEvents::EventChannel_i:

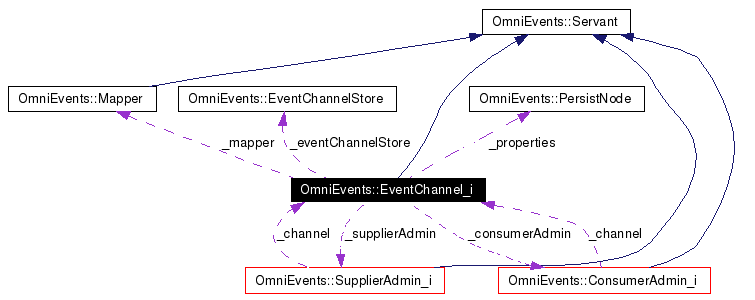

[legend]Collaboration diagram for OmniEvents::EventChannel_i:

[legend]List of all members.

Public Member Functions
CosEventChannelAdmin::ConsumerAdmin_ptr	for_consumers ()
CosEventChannelAdmin::SupplierAdmin_ptr	for_suppliers ()
void	destroy ()
CORBA::Boolean	is_alive ()
	'ping' method inherited from FT::PullMonitorable.
	EventChannel_i (EventChannelStore *store=NULL)
	~EventChannel_i ()
	Cleans up the _poa, if this object is deleted before its thread starts.
void	activate (const char *channelName, const PersistNode *node=NULL)
	Creates the channel's POA, and any child objects.
void	start ()
	Warn about interface change.
void *	run_undetached (void *)
	Entry point for the channel's thread.
void	mainLoop ()
	The main loop for a channel.
void	_add_ref ()
void	_remove_ref ()
	Shutdown the thread when refCount reaches zero.
void	output (ostream &os)
ConsumerAdmin_i &	consumerAdmin () const
const PersistNode &	properties () const
CORBA::ULong	pullRetryPeriod_ms () const
CORBA::ULong	maxQueueLength () const
CORBA::ULong	maxNumProxies () const
unsigned long	cyclePeriod_ns () const
Private Member Functions
void	setInsName (const string v)
	Construct a new Mapper object, and registers it in the INSPOA.
void	createPoa (const char *channelName)
	Constructs the main POA for this channel.
Private Attributes
EventChannelStore *	_eventChannelStore
SupplierAdmin_i *	_supplierAdmin
ConsumerAdmin_i *	_consumerAdmin
PortableServer::POAManager_var	_poaManager
bool	_shutdownRequested
PersistNode	_properties
Mapper *	_mapper
omni_mutex	_lock
int	_refCount

---

Detailed Description

Servant for CosEventChannelAdmin::EventChannel objects, also inherits from omni_thread.

Each EventChannel contains five POAs, one for each of the proxy types, and one for the XXXAdmins and EventChannel itself. This POA also contains the ProxyManager objects that are used to manage three of the four proxy object types.

Here's a summary of the POAs, and their contents:

     +-POA: EventChannel-----------------------------------------------+
     |                                                                 |
     |                      Obj: EventChannel_i                        |
     |                                                                 |
     |       Obj: SupplierAdmin_i           Obj: ConsumerAdmin_i       |
     |                                                                 |
     |                                 Obj: ProxyPushSupplierManager   |
     |                                                                 |
     |   +-POA: ProxyPushConsumer---+   +-POA: ProxyPushSupplier---+   |
     |   |                          |   |                          |   |
     |   | Obj: ProxyPushConsumer_i |   | Obj: ProxyPushSupplier_i |   |
     |   | (DEFAULT SERVANT)        |   | Obj: ProxyPushSupplier_i |   |
     |   |                          |   | Obj: ProxyPushSupplier_i |   |
     |   |                          |   | .                        |   |
     |   |                          |   | .                        |   |
     |   |                          |   | .                        |   |
     |   |                          |   |                          |   |
     |   +--------------------------+   +--------------------------+   |
     |                                                                 |
     |  Obj: ProxyPullConsumerManager  Obj: ProxyPullSupplierManager   |
     |                                                                 |
     |   +-POA: ProxyPullConsumer---+   +-POA: ProxyPullSupplier---+   |
     |   |                          |   |                          |   |
     |   | Obj: ProxyPullConsumer_i |   | Obj: ProxyPullSupplier_i |   |
     |   | Obj: ProxyPullConsumer_i |   | Obj: ProxyPullSupplier_i |   |
     |   | Obj: ProxyPullConsumer_i |   | Obj: ProxyPullSupplier_i |   |
     |   | .                        |   | .                        |   |
     |   | .                        |   | .                        |   |
     |   | .                        |   | .                        |   |
     |   |                          |   |                          |   |
     |   +--------------------------+   +--------------------------+   |
     |                                                                 |
     +-----------------------------------------------------------------+


All five POAs are single threaded, and managed by the same POAmanager. This enables the top level event loop (EventChannel::run()) to hold all incoming calls while it passes events from the ProxyConsumers over to the ProxySuppliers. This single threaded model simplifies[*] the implementation and avoids all of the locking overheads of a multi-threaded solution.

[*] That's the theory anyway... Actually the single threaded model complicates the underlying implementation, because omniORB treats single threaded POAs as a special case on top of multi-threaded ones, rather than the other way round! Ironic!

Definition at line 111 of file EventChannel.h.

---

Constructor & Destructor Documentation

OmniEvents::EventChannel_i::EventChannel_i (  EventChannelStore *  store = NULL  )

Definition at line 69 of file EventChannel.cc.

OmniEvents::EventChannel_i::~EventChannel_i (   )

Cleans up the _poa, if this object is deleted before its thread starts. Definition at line 127 of file EventChannel.cc. References _consumerAdmin, _mapper, _supplierAdmin, DB, and OmniEvents::Mapper::destroy().

---

Member Function Documentation

void OmniEvents::EventChannel_i::_add_ref (   )

Definition at line 248 of file EventChannel.cc. References _lock, _refCount, and DB.

void OmniEvents::EventChannel_i::_remove_ref (   )

Shutdown the thread when refCount reaches zero. Definition at line 258 of file EventChannel.cc. References _lock, _refCount, and DB. Referenced by activate().

void OmniEvents::EventChannel_i::activate (  const char *  channelName, const PersistNode *  node = NULL )

Creates the channel's POA, and any child objects. Must to be called just after construction, and before start()/run(). Definition at line 83 of file EventChannel.cc. References OmniEvents::PersistNode::_attr, _consumerAdmin, OmniEvents::Servant::_poa, _properties, _remove_ref(), _supplierAdmin, OmniEvents::Servant::activateObjectWithId(), OmniEvents::PersistNode::attrString(), OmniEvents::PersistNode::child(), createPoa(), OmniEvents::ConsumerAdmin_i::reincarnate(), OmniEvents::SupplierAdmin_i::reincarnate(), and setInsName(). Referenced by OmniEvents::EventChannelFactory_i::EventChannelFactory_i(), and main().

ConsumerAdmin_i& OmniEvents::EventChannel_i::consumerAdmin (   )  const [inline]

Definition at line 168 of file EventChannel.h. References _consumerAdmin. Referenced by OmniEvents::SupplierAdmin_i::SupplierAdmin_i().

void OmniEvents::EventChannel_i::createPoa (  const char *  channelName  )  [private]

Constructs the main POA for this channel. Policies are: PERSISTENT, USER_ID, SINGLE_THREAD_MODEL. POA name is set to channelName. Definition at line 322 of file EventChannel.cc. References OmniEvents::Servant::_poa, _poaManager, OmniEvents::Orb::_RootPOA, DB, and OmniEvents::Orb::inst(). Referenced by activate().

unsigned long OmniEvents::EventChannel_i::cyclePeriod_ns (   )  const [inline]

Definition at line 181 of file EventChannel.h. References _properties, OmniEvents::PersistNode::attrLong(), and CYCLE_PERIOD_NS. Referenced by mainLoop(), and OmniEvents::SupplierAdmin_i::SupplierAdmin_i().

void OmniEvents::EventChannel_i::destroy (   )

Definition at line 51 of file EventChannel.cc. References _consumerAdmin, _shutdownRequested, _supplierAdmin, DB, OmniEvents::SupplierAdmin_i::disconnect(), and OmniEvents::ConsumerAdmin_i::disconnect().

CosEventChannelAdmin::ConsumerAdmin_ptr OmniEvents::EventChannel_i::for_consumers (   )

Definition at line 35 of file EventChannel.cc. References _consumerAdmin, and _shutdownRequested.

CosEventChannelAdmin::SupplierAdmin_ptr OmniEvents::EventChannel_i::for_suppliers (   )

Definition at line 43 of file EventChannel.cc. References _shutdownRequested, and _supplierAdmin.

CORBA::Boolean OmniEvents::EventChannel_i::is_alive (   )  [inline]

'ping' method inherited from FT::PullMonitorable. Definition at line 121 of file EventChannel.h.

void OmniEvents::EventChannel_i::mainLoop (   )

The main loop for a channel. Work is strictly separated into two phases. Most of the time, all of the POAs are active, and receiving incoming calls. Periodically, incoming calls are held and the channel collects new events from the consumers and sends them to the suppliers. Incoming call handlers are all designed to complete in the absolute minimum time. This enables the POAs to be single threaded, and to hold incoming calls without having to wait a long time for ongoing invokations to complete. Sadly, it's not possible to implement ProxyPullSupplier::pull() 'properly' without blocking, so our version just raises TRANSIENT if there is no event immediately available. Outgoing calls are always sent as deferred requests, to avoid blocking while we wait for them to return. Definition at line 221 of file EventChannel.cc. References _consumerAdmin, _poaManager, _refCount, _shutdownRequested, _supplierAdmin, OmniEvents::SupplierAdmin_i::collect(), cyclePeriod_ns(), and OmniEvents::ConsumerAdmin_i::send(). Referenced by run_undetached().

CORBA::ULong OmniEvents::EventChannel_i::maxNumProxies (   )  const [inline]

Definition at line 179 of file EventChannel.h. References _properties, OmniEvents::PersistNode::attrLong(), and MAX_NUM_PROXIES. Referenced by OmniEvents::ProxyPullSupplierManager::incarnate().

CORBA::ULong OmniEvents::EventChannel_i::maxQueueLength (   )  const [inline]

Definition at line 177 of file EventChannel.h. References _properties, OmniEvents::PersistNode::attrLong(), and MAX_QUEUE_LENGTH.

void OmniEvents::EventChannel_i::output (  ostream &  os  )

Definition at line 281 of file EventChannel.cc. References _consumerAdmin, OmniEvents::Servant::_poa, _properties, _supplierAdmin, OmniEvents::ConsumerAdmin_i::output(), OmniEvents::SupplierAdmin_i::output(), and OmniEvents::PersistNode::output(). Referenced by run_undetached().

const PersistNode& OmniEvents::EventChannel_i::properties (   )  const [inline]

Definition at line 170 of file EventChannel.h. References _properties. Referenced by OmniEvents::ConsumerAdmin_i::ConsumerAdmin_i().

CORBA::ULong OmniEvents::EventChannel_i::pullRetryPeriod_ms (   )  const [inline]

Definition at line 175 of file EventChannel.h. References _properties, OmniEvents::PersistNode::attrLong(), and PULL_RETRY_PERIOD_MS. Referenced by OmniEvents::SupplierAdmin_i::SupplierAdmin_i().

void * OmniEvents::EventChannel_i::run_undetached (  void *   )

Entry point for the channel's thread. Calls mainLoop() and waits for it to exit. Handles any exceptions, and shuts down the channel once the main loop has finished. Definition at line 153 of file EventChannel.cc. References _eventChannelStore, OmniEvents::Servant::_poa, _shutdownRequested, DB, OmniEvents::EventChannelStore::erase(), OmniEvents::omniEventsLog::exists(), OmniEvents::EventChannelStore::insert(), mainLoop(), NP_MINORSTRING, OmniEvents::WriteLock::os, and output().

void OmniEvents::EventChannel_i::setInsName (  const string  v  )  [private]

Construct a new Mapper object, and registers it in the INSPOA. Definition at line 293 of file EventChannel.cc. References _mapper, and OmniEvents::Mapper::destroy(). Referenced by activate().

void OmniEvents::EventChannel_i::start (   )  [inline]

Warn about interface change. Definition at line 135 of file EventChannel.h. References DB.

---

Member Data Documentation

ConsumerAdmin_i* OmniEvents::EventChannel_i::_consumerAdmin [private]

Definition at line 198 of file EventChannel.h. Referenced by activate(), consumerAdmin(), destroy(), for_consumers(), mainLoop(), output(), and ~EventChannel_i().

EventChannelStore* OmniEvents::EventChannel_i::_eventChannelStore [private]

Definition at line 196 of file EventChannel.h. Referenced by run_undetached().

omni_mutex OmniEvents::EventChannel_i::_lock [private]

Definition at line 203 of file EventChannel.h. Referenced by _add_ref(), and _remove_ref().

Mapper* OmniEvents::EventChannel_i::_mapper [private]

Definition at line 202 of file EventChannel.h. Referenced by setInsName(), and ~EventChannel_i().

PortableServer::POAManager_var OmniEvents::EventChannel_i::_poaManager [private]

Definition at line 199 of file EventChannel.h. Referenced by createPoa(), and mainLoop().

PersistNode OmniEvents::EventChannel_i::_properties [private]

Definition at line 201 of file EventChannel.h. Referenced by activate(), cyclePeriod_ns(), maxNumProxies(), maxQueueLength(), output(), properties(), and pullRetryPeriod_ms().

int OmniEvents::EventChannel_i::_refCount [private]

Definition at line 204 of file EventChannel.h. Referenced by _add_ref(), _remove_ref(), and mainLoop().

bool OmniEvents::EventChannel_i::_shutdownRequested [private]

Definition at line 200 of file EventChannel.h. Referenced by destroy(), for_consumers(), for_suppliers(), mainLoop(), and run_undetached().

SupplierAdmin_i* OmniEvents::EventChannel_i::_supplierAdmin [private]

Definition at line 197 of file EventChannel.h. Referenced by activate(), destroy(), for_suppliers(), mainLoop(), output(), and ~EventChannel_i().

---

The documentation for this class was generated from the following files:

• EventChannel.h
• EventChannel.cc

---
