OmniEvents::omniEventsLog Class Reference

#include <omniEventsLog.h>

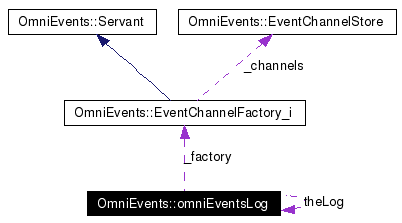

Collaboration diagram for OmniEvents::omniEventsLog:

[legend]List of all members.

Public Member Functions
	omniEventsLog (const char *logdir=NULL)
virtual	~omniEventsLog ()
bool	fileExists (const char *filename) const
const char *	activeFilename () const
const char *	backupFilename () const
PersistNode *	bootstrap (int port, const char *endPointNoListen)
	Creates an initialState from its arguments.
virtual PersistNode *	parse ()
	Creates an initialState from the logfile.
void	incarnateFactory (PersistNode *initialState)
	Constructs the EventChannelFactory from the information in the initialState parameter.
virtual void	runWorker ()
	Kicks off the worker thread that periodically checkpoints the persistency logfile.
EventChannelFactory_i *	factory ()
	accessor method
void	checkpoint (void)
	Entry point used by the omniEventsLogWorker to perform checkpointing.
virtual void	output (ostream &os)
Static Public Member Functions
static bool	exists ()
	Library code may create Event Service objects without the need for persistency.
Protected Member Functions
virtual void	initializeFileNames (const char *logdir)
	Sets the values of 'active', 'backup' and 'checkpoint' file names.
void	setFilename (char *&filename, const char *logdir, const char *sep, const char *logname, const char *hostname, const char *ext)
	Helper function that sets the value of the first parameter to the concatenation of all the subsequent parameters.
virtual void	openOfstream (ofstream &s, const char *filename, int flags=0, int *fd=NULL)
	Helper method that opens an output file stream using whatever method is available.
Protected Attributes
ofstream	_logstream
char *	_activeFilename
char *	_backupFilename
char *	_checkpointFilename
omni_thread *	_workerThread
	In charge of checkpoints.
EventChannelFactory_i *	_factory
bool	_checkpointNeeded
omni_mutex	_lock
Static Protected Attributes
static omniEventsLog *	theLog = NULL
Friends
class	WriteLock
Classes
class	IOError

---

Detailed Description

Definition at line 137 of file omniEventsLog.h.

---

Constructor & Destructor Documentation

OmniEvents::omniEventsLog::omniEventsLog (  const char *  logdir = NULL  )

Definition at line 283 of file omniEventsLog.cc. References initializeFileNames(), and theLog.

OmniEvents::omniEventsLog::~omniEventsLog (   )  [virtual]

Definition at line 298 of file omniEventsLog.cc. References _factory, DB, and theLog.

---

Member Function Documentation

const char* OmniEvents::omniEventsLog::activeFilename (   )  const [inline]

Definition at line 150 of file omniEventsLog.h. References _activeFilename.

const char* OmniEvents::omniEventsLog::backupFilename (   )  const [inline]

Definition at line 151 of file omniEventsLog.h. References _backupFilename.

PersistNode * OmniEvents::omniEventsLog::bootstrap (  int  port, const char *  endPointNoListen )

Creates an initialState from its arguments. Used when the server is cold started with no saved state. Aborts with an error if there are any logfiles in the log directory. Definition at line 324 of file omniEventsLog.cc. References OmniEvents::PersistNode::addattr(), and OmniEvents::PersistNode::addnode().

void OmniEvents::omniEventsLog::checkpoint (  void   )

Entry point used by the omniEventsLogWorker to perform checkpointing. The active logfile is moved to backup, and a new active logfile is created. Definition at line 433 of file omniEventsLog.cc. References _activeFilename, _backupFilename, _checkpointFilename, _checkpointNeeded, _lock, _logstream, DB, mutex, OMNIEVENTS_LOG_CHECKPOINT_PERIOD, openOfstream(), output(), OmniEvents::timestamp::t(), and OmniEvents::ts. Referenced by runWorker().

static bool OmniEvents::omniEventsLog::exists (   )  [inline, static]

Library code may create Event Service objects without the need for persistency. We use this method to check for the log object, before attempting to write out state changes. Definition at line 144 of file omniEventsLog.h. References theLog. Referenced by OmniEvents::ProxyPushSupplier_i::callback(), OmniEvents::ProxyPushConsumer_i::Connection::callback(), OmniEvents::ProxyPullSupplier_i::connect_pull_consumer(), OmniEvents::ProxyPullConsumer_i::connect_pull_supplier(), OmniEvents::ProxyPushSupplier_i::connect_push_consumer(), OmniEvents::ProxyPushConsumer_i::connect_push_supplier(), OmniEvents::ProxyPushConsumer_i::disconnect_push_consumer(), OmniEvents::Proxy::eraseKey(), and OmniEvents::EventChannel_i::run_undetached().

EventChannelFactory_i* OmniEvents::omniEventsLog::factory (   )  [inline]

accessor method Definition at line 176 of file omniEventsLog.h. References _factory.

bool OmniEvents::omniEventsLog::fileExists (  const char *  filename  )  const

Definition at line 317 of file omniEventsLog.cc. References STRUCT_STAT. Referenced by incarnateFactory(), and parse().

void OmniEvents::omniEventsLog::incarnateFactory (  PersistNode *  initialState  )

Constructs the EventChannelFactory from the information in the initialState parameter. Definition at line 379 of file omniEventsLog.cc. References _activeFilename, _factory, _logstream, OmniEvents::PersistNode::child(), fileExists(), OMNIEVENTS_LOGDIR_ENV_VAR, and openOfstream().

void OmniEvents::omniEventsLog::initializeFileNames (  const char *  logdir  )  [protected, virtual]

Sets the values of 'active', 'backup' and 'checkpoint' file names. The files are placed in the log file directory, that is specified by: command line parameter -l, OR ELSE OMNIEVENTS_LOGDIR_ENV_VAR env. var. (default `OMNIEVENTS_LOGDIR'), OR ELSE OMNIEVENTS_LOG_DEFAULT_LOCATION (set in defaults.h), OR ELSE Unix: /var/lib/omniEvents, Win32: C:, VMS: [] The current hostname is incorporated into the file names. Definition at line 611 of file omniEventsLog.cc. References _activeFilename, _backupFilename, _checkpointFilename, gethostname(), MAXHOSTNAMELEN, OMNIEVENTS_LOG_DEFAULT_LOCATION, OMNIEVENTS_LOGDIR_ENV_VAR, setFilename(), and VMS_SEMICOLON. Referenced by omniEventsLog().

void OmniEvents::omniEventsLog::openOfstream (  ofstream &  s, const char *  filename, int  flags = 0, int *  fd = NULL )  [protected, virtual]

Helper method that opens an output file stream using whatever method is available. Available flags are: FLAG_TRUNCATE FLAG_APPEND FLAG_SYNC Parameters: s  reference to the ofstream object. filename  the name of the file to open. flags  see description for available mode flags. fd  reference to a file descriptor. If used, this parameter is set to the fd that was opened, if any. Definition at line 685 of file omniEventsLog.cc. Referenced by checkpoint(), and incarnateFactory().

void OmniEvents::omniEventsLog::output (  ostream &  os  )  [virtual]

Definition at line 426 of file omniEventsLog.cc. References _factory, and OmniEvents::EventChannelFactory_i::output(). Referenced by checkpoint().

PersistNode * OmniEvents::omniEventsLog::parse (   )  [virtual]

Creates an initialState from the logfile. Used when the server is warm started. Aborts with an error if there is no logfile in the log directory. Definition at line 337 of file omniEventsLog.cc. References _activeFilename, _backupFilename, OmniEvents::PersistNode::attrLong(), OmniEvents::PersistNode::child(), and fileExists().

void OmniEvents::omniEventsLog::runWorker (   )  [virtual]

Kicks off the worker thread that periodically checkpoints the persistency logfile. Definition at line 414 of file omniEventsLog.cc. References _factory, _workerThread, and checkpoint().

void OmniEvents::omniEventsLog::setFilename (  char *&  filename, const char *  logdir, const char *  sep, const char *  logname, const char *  hostname, const char *  ext )  [protected]

Helper function that sets the value of the first parameter to the concatenation of all the subsequent parameters. Parameters: filename  OUT parameter. Definition at line 661 of file omniEventsLog.cc. Referenced by initializeFileNames().

---

Friends And Related Function Documentation

friend class WriteLock [friend]

Definition at line 217 of file omniEventsLog.h.

---

Member Data Documentation

char* OmniEvents::omniEventsLog::_activeFilename [protected]

Definition at line 209 of file omniEventsLog.h. Referenced by activeFilename(), checkpoint(), incarnateFactory(), initializeFileNames(), and parse().

char* OmniEvents::omniEventsLog::_backupFilename [protected]

Definition at line 210 of file omniEventsLog.h. Referenced by backupFilename(), checkpoint(), initializeFileNames(), and parse().

char* OmniEvents::omniEventsLog::_checkpointFilename [protected]

Definition at line 211 of file omniEventsLog.h. Referenced by checkpoint(), and initializeFileNames().

bool OmniEvents::omniEventsLog::_checkpointNeeded [protected]

Definition at line 214 of file omniEventsLog.h. Referenced by checkpoint(), and OmniEvents::WriteLock::~WriteLock().

EventChannelFactory_i* OmniEvents::omniEventsLog::_factory [protected]

Definition at line 213 of file omniEventsLog.h. Referenced by factory(), incarnateFactory(), output(), runWorker(), and ~omniEventsLog().

omni_mutex OmniEvents::omniEventsLog::_lock [protected]

Definition at line 215 of file omniEventsLog.h. Referenced by checkpoint().

ofstream OmniEvents::omniEventsLog::_logstream [protected]

Definition at line 208 of file omniEventsLog.h. Referenced by checkpoint(), and incarnateFactory().

omni_thread* OmniEvents::omniEventsLog::_workerThread [protected]

In charge of checkpoints. Definition at line 212 of file omniEventsLog.h. Referenced by runWorker().

omniEventsLog * OmniEvents::omniEventsLog::theLog = NULL [static, protected]

Definition at line 281 of file omniEventsLog.cc. Referenced by exists(), omniEventsLog(), ~omniEventsLog(), and OmniEvents::WriteLock::~WriteLock().

---

The documentation for this class was generated from the following files:

• omniEventsLog.h
• omniEventsLog.cc

---
